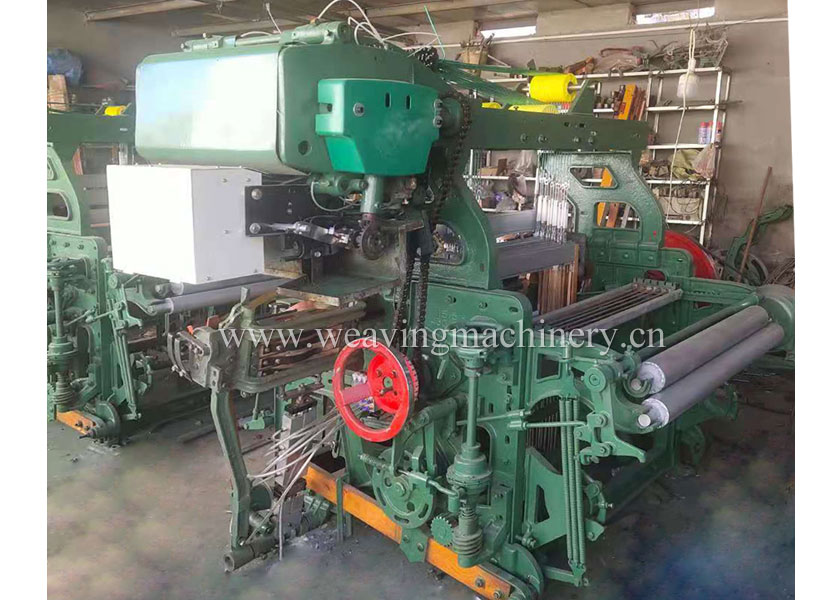

GAS Shuttle loom The applicability is very wide, and it is suitable for the weaving of various material fabrics. The main disadvantage is the slow speed.
It can be equipped with various devices such as dobby, automatic shuttle changing device, multiple shuttle box and so on. Our technicians can customize the shuttle loom according to customer requirements to meet customer requirements
Technical parameters:
1)、Type---Under picking type,non-stop and auto-changing
2)、Hand type: R•H and L•H
3)、reed space—32”,36”,44”
4)、Max.space of warp:100cm,120cm
5)、crank shaft speed : 160-190rpm
6)、Angle between reed and shuttle plate:86°36¹
7)、Device system: clutch driven by motor with triangle type belt.
8)、Motor model: model Fo-53-6N: 0.8Kw .960r/min.
9)、Shuttle box type: 1x1/10pcs
10)、Shedding device: tappet shedding
11)、Beating-up motion: warp yarn protecting readsliding beating-up
12)、Rolling type: seven teeth interval rolling, max rolling dia: 300mm
13)、Weft stop motin side fork or weft feeler without weft,machine stop
