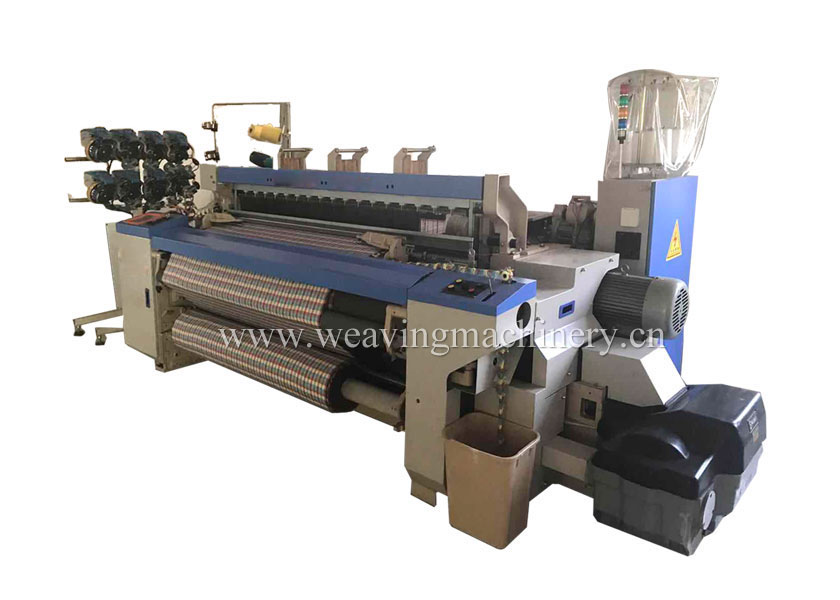

The JAS900 high-speed air jet is developed by our company with reference to the Tsudakoma 9100 air jet loom. The mechanical part is almost completely consistent. It truly achieves high production efficiency, wide weaving range, energy saving and extremely high possibility, advanced electronic control The technology makes the operation easier, adapts to the replacement of manufacturing varieties more quickly, and perfectly weaves a variety of high value-added fabrics.

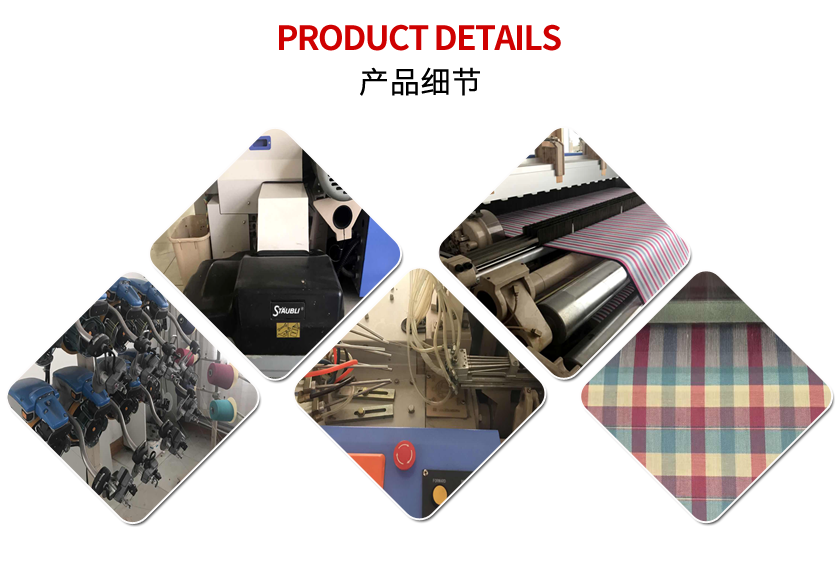

Equipped with electronic let-off and take-up device, electronic weft feeder, electronic selvedge, positive let-off mechanism, high-speed six-links beating-up, multi-support beating-up, special-shaped cloth guide rod device, electronic multi-color Weft selection, electronic jacquard, automatic weft insertion navigation, automatic fault detection, status monitoring and other functions realize wide, efficient, stable and reliable high-speed remote rotation, which is more prominent in terms of high speed, low vibration, and energy saving.
Suitable for weaving various industrial materials from general clothing fabrics to denim, wool, glass fiber, tire base cloth, airbag cloth, etc.
Technical Parameters:
Nominal reed width: 150,170,190,210,230,280,340,360cm
Weaving range: staple fiber: Ne80-Ne5; filament: 56D-1000D
Weft selection: single nozzle, double nozzle, four nozzle, eight nozzle
Power: motor directly driven; motor: 1.8, 2.2, 2.8, 3.5,5.5, 7.5KW
Speed: 500-750rpm
Weft insertion method: the main and sub-nozzle , profile reeds, and the auxiliary nozzle relay control, Stretching nozzle.
Shedding: crank shedding, cam shedding, dobby shedding, jacquard.
Let-off: electronic or mechanical
Diameter of warp head: 800; 1000
Take up: electronic or mechanical, Positive let off.
Maximum roll diameter: Φ520mm, external winding Φ600mm,out loom winding: Φ1200m
Weft density range: 9.8-78.7 pieces (25-200 pieces/inch)
Beating-up: 4-link beat-up or 6-link beat-up (solid beat-up)
Selvedge: mechanical scissors, pneumatic smooth edge, mechanically folded edge with tucking device
Parking device: weft Reflective weft feeler, one-head system, two-head system; 4 or 6 columns dropper warp; 4 color indicator light display
Automation: computer control system
