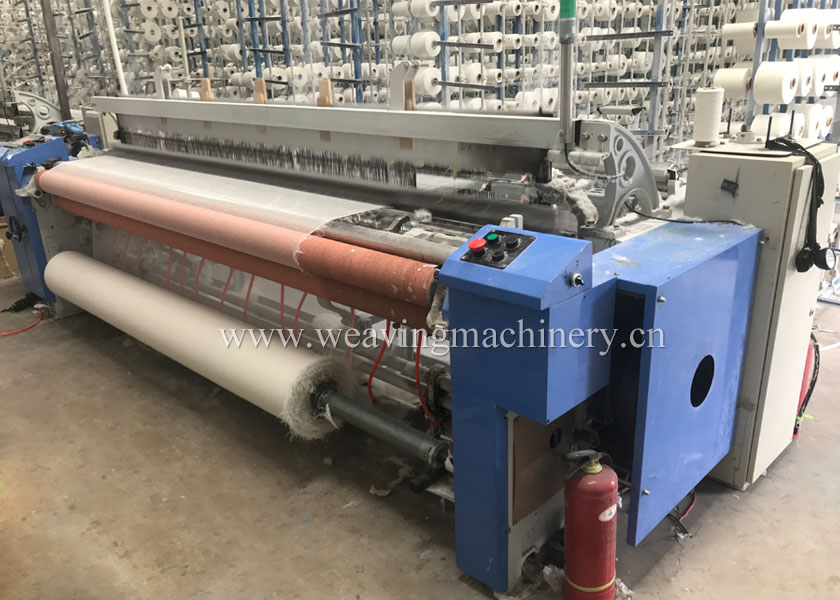

The JAS706 gauze air jet loom is an air jet loom specially developed by our company for all kinds of gauze. This model is suitable for 21-40 counts of degreasing gauze (no sizing). The strong box frame and beams on both sides form a high rigid frame structure that reduces vibration and enhances stability. The electrical appliances have a high degree of automation, which can display the start-up efficiency and the number of meters per shift. Can set the length of the cloth to stop automatically. The advanced air-jet hemming device makes the cloth surface smooth and improves the quality of the cloth surface.
According to user requirements, the middle opening mechanism can be configured to realize multi-width weaving，produce medical gauze roll, medical gauze bandage, medical gauze swabs etc.
Technical Parameters:
Nominal reed width: 150,170,190,210,230,280,340,360,460cm
Weaving range: staple fiber: Ne80-Ne5; filament: 56D-1000D
Weft selection: single nozzle
Power: motor directly driven; motor: 1.8, 2.2, 2.8, 3.5KW
Speed: 500-900rpm
Weft insertion method: the main and sub-nozzle , profile reeds, and the auxiliary nozzle relay control.
Shedding: crank shedding
Let-off: electronic or mechanical
Diameter of warp head: 800; 1000
Take up: electronic or mechanical
Maximum roll diameter: Φ520mm, external winding Φ600mm,out loom winding: Φ1200m
Weft density range: 9.8-78.7 pieces (25-200 pieces/inch)
Beating-up: 4-link beat-up or 6-link beat-up (solid beat-up)
Selvedge: mechanical scissors, pneumatic smooth edge, mechanically folded edge with tucking device
Parking device: weft Reflective weft feeler, one-head system, two-head system; 4 or 6 columns dropper warp; 4 color indicator light display
Automation: computer control system
