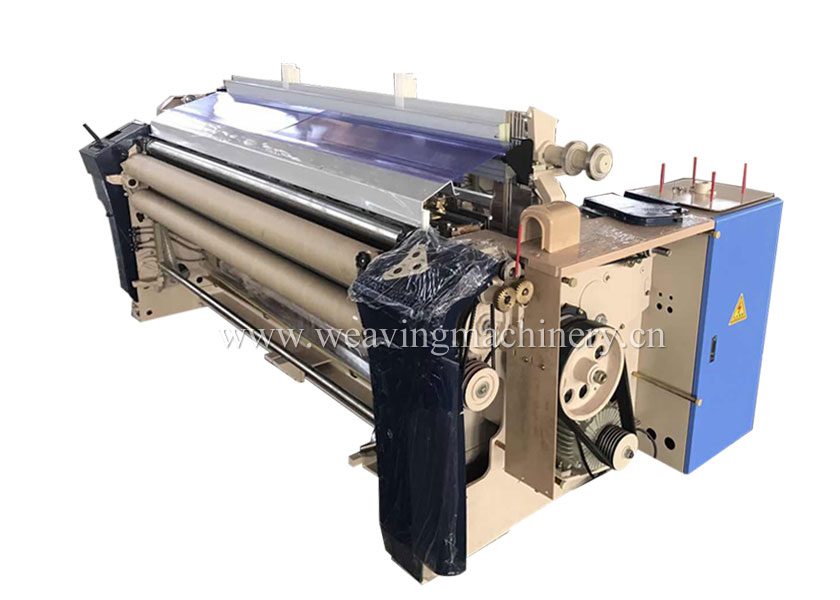

JWS822 high speed water jet loom is based on the 851 series of looms to redesign the mechanical structure and components, comprehensively improve and strengthen the let off, shedding, coiling, transmission system and the stability of the whole machine, make the whole machine run more smoothly, reduce the vibration and noise in the operation of the loom, improve the operation efficiency of the loom, and expand the range of weaving products.
Technical parameters:
1. Nominal reed width: 150,170,190,210,230,280,300,320,340,360
2. Effective reed width: 0 ～ - 500mm (standard configuration); 0 ~ - 700mm (optional)
3. Number of nozzles: single spray, double spray, three spray, four spray
4. Shedding type: flat opening, cam opening, dobby opening, jacquard opening
5. Beating up type: Crank type beating, multiple sley sword beating (standard configuration is reinforced hollow beating up shaft, optional six link beating up)
6. Scissors and optical probe: mechanical ceramic scissors; Photoelectric weft detector
7. Diameter of beam head: ∮ 800mm, ∮ 1000mm (optional)
