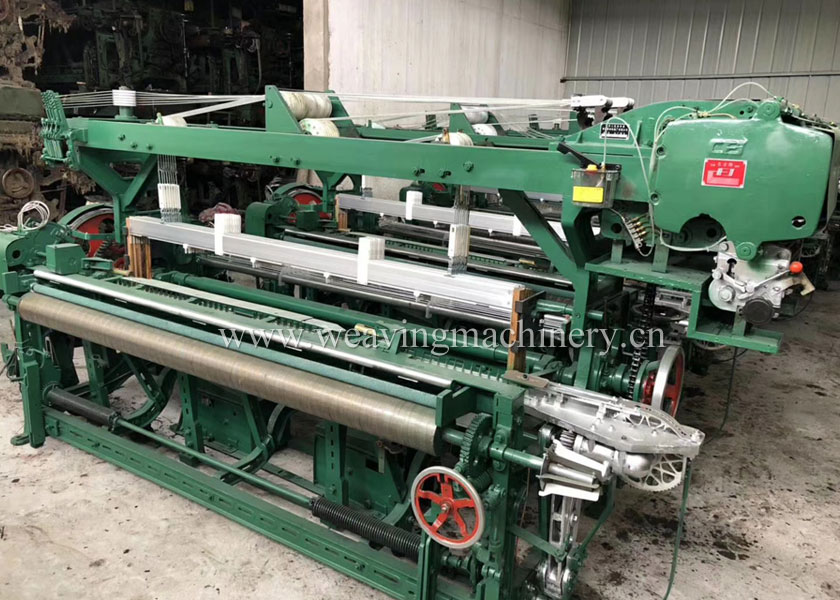

GAS series rapier looms are suitable for weaving plain weave, twill weave, satin weave and small jacquard fabrics made of cotton, chemical fiber and donated spinning. The product adopts the weft insertion with the circling rapier belt, the ASGT211 dobby opening, the six-color weft selection, and the warp let-off outside the machine. The fault location of broken warp, broken weft and weft feeder is self-defining. There is indication KJ light display. At the same time, the machine uses carbon fiber composite materials and aluminum alloy materials with light weight and high strength, and the structure is simple and reliable.
Our company has also developed rapier towel machine, rapier velvet loom, rapier leno loom, rapier insect-proof net loom, rapier jute loom, rapier mosquito net loom on the GAS series.
Technical parameters:
1.Working Width:135cm,150cm,180cm,200cm,230cm,250cm,280cm
2. Working Speed: 220-160 r/min
3. Yarn: Cotton, chemical fiber & blending
4.Counts :75-1800D;13-195tex
5.Shedding motion: tappet or dobby
6. Weft selection: 1 or computer controlled 6-8
7. Weft density: 5-40 threads/cm
8. Selvedge type:cutter or tuck in
9. The diameter of warp flanges: Φ550mm or Φ600mm
10. The diameter of fullcloth: Φ300mm /400mm
11. Warp stop motion: six-row or two row electrical control.
12. Weft stops motion: piezoelectric ceramics
