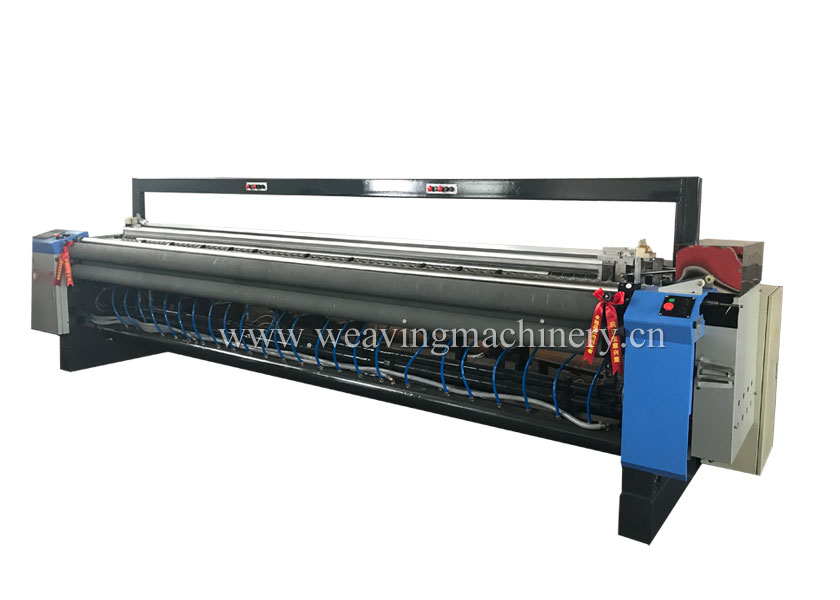

The JAS800Carpet primary backing making machine is an air-jet loom specially developed by our company for weaving carpets and artificial turf leno mesh base fabric, equipped with a folding device, and the ultra-wide machine width reaches 460cm.All accessories are reinforced to make the machine run stably at high speed
At present, this model can be used for the weaving of leno mesh such as carpet leno base cloth, glass fiber leno mesh cloth, etc.
Technical Parameters:
Nominal reed width:190,210,230,280,340,360,460cm
Weaving range: staple fiber: Ne80-Ne5; filament: 56D-1000D
Weft selection: single nozzle
Power: motor directly driven; motor: 1.8, 2.2, 2.8, 3.5KW
Speed: 500-900rpm
Weft insertion method: the main and sub-nozzle , profile reeds, and the auxiliary nozzle relay control.
Shedding: leno device
Let-off: electronic or mechanical
Diameter of warp head: 800; 1000
Take up: electronic or mechanical
Maximum roll diameter: Φ520mm, external winding Φ600mm,out loom winding: Φ1200m
Weft density range: 9.8-78.7 pieces (25-200 pieces/inch)
Beating-up: 4-link beat-up or 6-link beat-up (solid beat-up)
Selvedge: mechanical scissors, pneumatic smooth edge, mechanically folded edge with tucking device
Parking device: weft Reflective weft feeler, one-head system, two-head system; 4 or 6 columns dropper warp; 4 color indicator light display
Automation: computer control system
