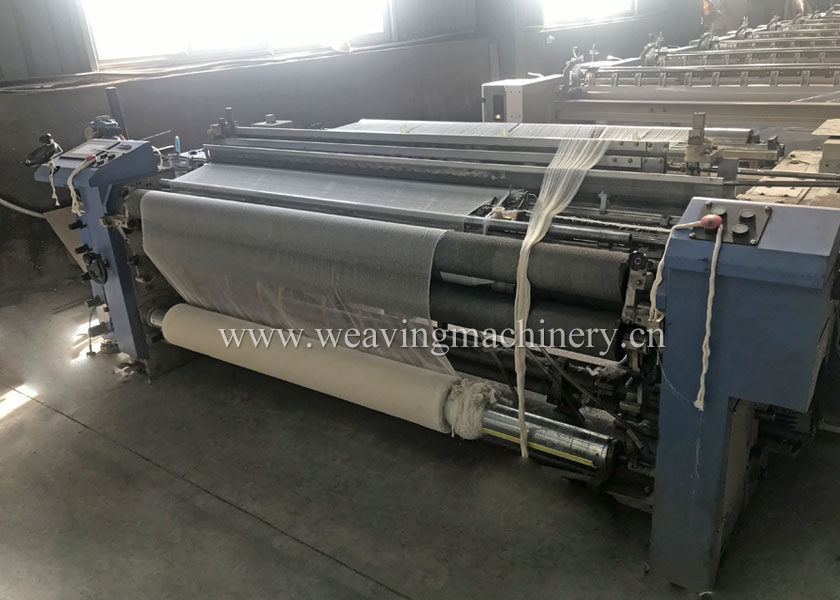

JAS806 Medical gauze leno mesh making air jet loom is an air jet loom specially developed by our company for customers. It can be woven with one weft and leno at a time, or two wefts can be woven plainly and twisted at one time.
Technical Parameters:
Nominal reed width:190,210,230,280,340,360cm
Weaving range: staple fiber: Ne80-Ne5; filament: 56D-1000D
Weft selection: single nozzle
Power: motor directly driven; motor: 1.8, 2.2, 2.8, 3.5KW
Speed: 500-900rpm
Weft insertion method: the main and sub-nozzle , profile reeds, and the auxiliary nozzle relay control.
Shedding: leno device
Let-off: electronic or mechanical
Diameter of warp head: 800; 1000
Take up: electronic or mechanical
Maximum roll diameter: Φ520mm, external winding Φ600mm,out loom winding: Φ1200m
Weft density range: 9.8-78.7 pieces (25-200 pieces/inch)
Beating-up: 4-link beat-up or 6-link beat-up (solid beat-up)
Selvedge: mechanical scissors, pneumatic smooth edge, mechanically folded edge with tucking device
Parking device: weft Reflective weft feeler, one-head system, two-head system; 4 or 6 columns dropper warp; 4 color indicator light display
Automation: computer control system
