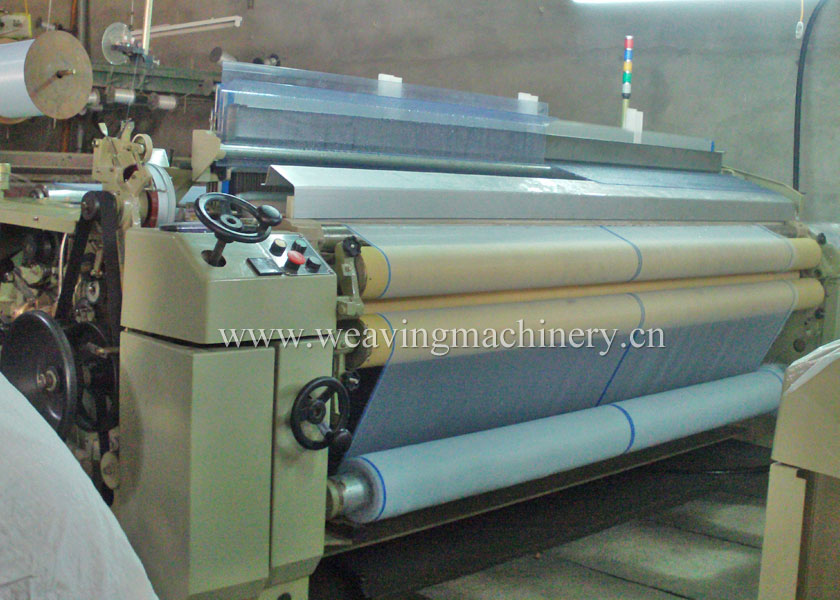

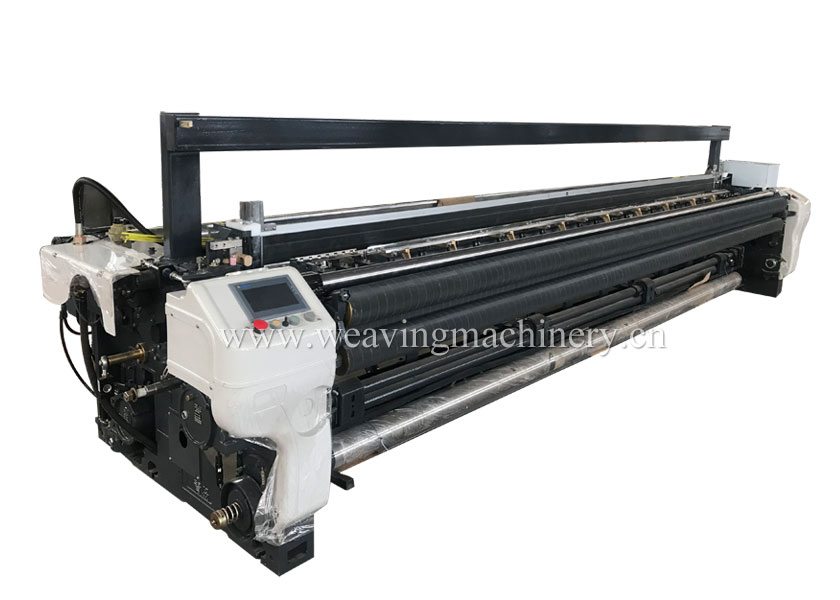

JWS408 HDPE Agricultural Anti Insect Net machine is a good choice for the production of net products. It has low cost, easy operation, high output, and a comprehensive production scale model. It is equipped with a fully automatic machine that automatically stops the weft and warp. , Its labor is very less, one person can operate 8-10 machines, low energy consumption and large output. The width of the loom can be selected from 190-460cm.
Except for anti insect net weaving, our water jet loom can also weave air conditioning filter, sieves screen, printing net, plastic mesh,Screen window and etc.

Technical Parameters
1.Nominal reed space:190,280,300,360,460cm
2.The effective width: 0~ - 500 - mm (standard); 0 - 700 - mm (optional)
3.The quantity of nozzle: single nozzle
4.Openings way: plain.
5.Beating-up: 4-linkage beating-up or 6-linkage beating up (solid beating-up shaft)
6.Scissors and feeler: Electric shears; photoelectric weft detector
7. Diameter of beam head: ∮ 800mm, ∮ 1000mm (optional)
8. Motor power: 1.5kw-5.4kw
9. Let off and take up: mechanical and electronic
10. Diameter of cloth: Φ 520mm, external coiling 600mm, out loom wind: 800mm
