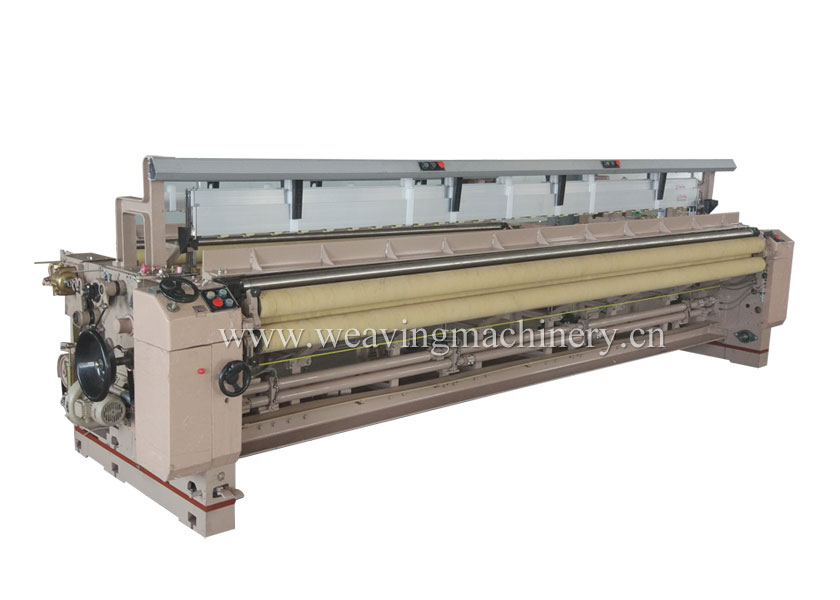

JWS608 heavy weight high speed special water jet loom is a special water jet loom for weaving HDPE/PP/PE flat yarn developed by our company for many years. The structure of many parts of the machine has been improved, so that the water jet loom can realize the high-speed weaving of PP, PE and other plastic flat yarn.
It can be widely used for weaving artificial turf base cloth, geotextile, grass proof cloth, tarpaulin, container bag, PP woven bag, conductive bag, handbag and other plastic packaging products
.Technical parameters:
1.Nominal reed space: 230,260,280,320,340,360,380, 420,460,480,560
2.The effective width: 0~ - 500 - mm (standard); 0 - 700 - mm (optional)
3.The quantity of nozzle: single nozzle
4.Openings way: plain. cam
5.Beating-up: 4-linkage beating-up,  6-linkage beating-up(solid beating-up shaft)
6.Scissors and feeler: electric scissors; photoelectric weft detector
7. Winding roller: outer winding 1200mm
8. Motor power: 1.5kw-5.4kw
10. Dehumidification mode: squeeze water and suction type
11. Weft specification: 500d-2000d
