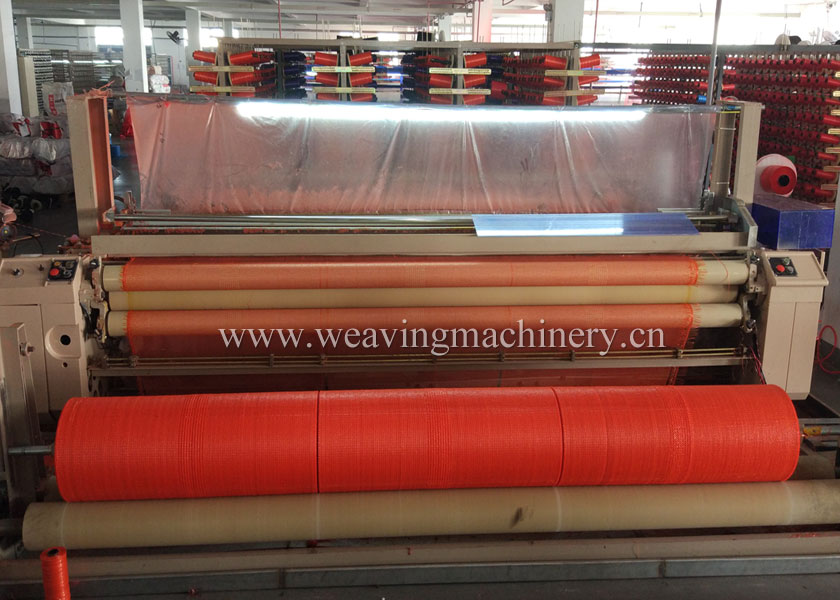

JWS618 heavy high-speed special water jet loom is a water jet loom specially developed by our company for weaving plastic flat yarn LENO after years of research and development. Equipped with our self-developed LENO device, it can weave LENO plastic flat fabrics, PP net bags, leno mesh bags, L stitching leno sacks.

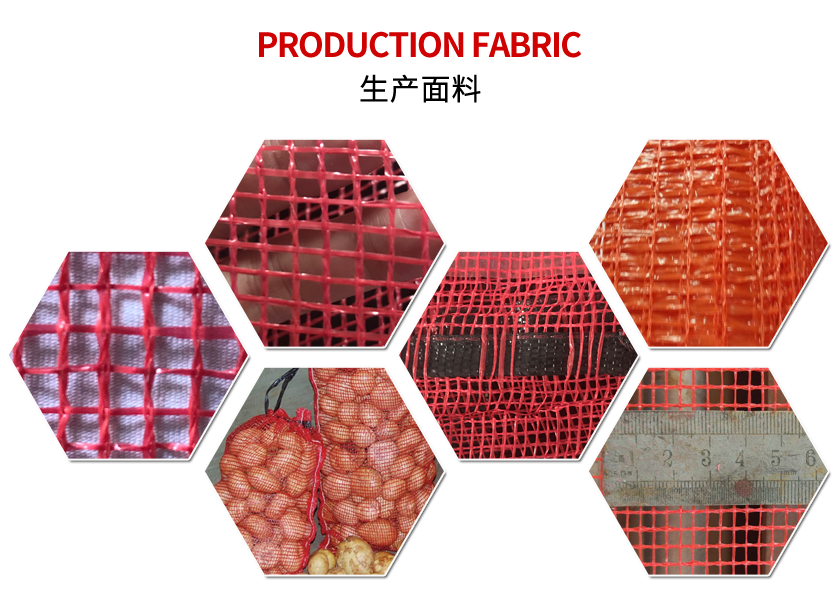

The final product is suitable for packaging bags for onions, garlic, oranges, etc., and is widely used in agriculture. Also used in food Industry: Potato, Aubergine, Cucumber, Carrot, Cabbage, Pepper, Plum etc.
.Technical parameters:
1.Nominal reed space: 230,260,280,320,340,360,380, 420,460,480,560
2.The effective width: 0~ - 500 - mm (standard); 0 - 700 - mm (optional)
3.The quantity of nozzle: single nozzle
4.Openings way: plain. cam
5.Beating-up: 4-linkage beating-up,  6-linkage beating-up(solid beating-up shaft)
6.Scissors and feeler: electric scissors; photoelectric weft detector
7. Winding roller: outer winding 1200mm
8. Motor power: 1.5kw-5.4kw
10. Dehumidification mode: squeeze water and suction type
11. Weft specification: 400d-1800d
