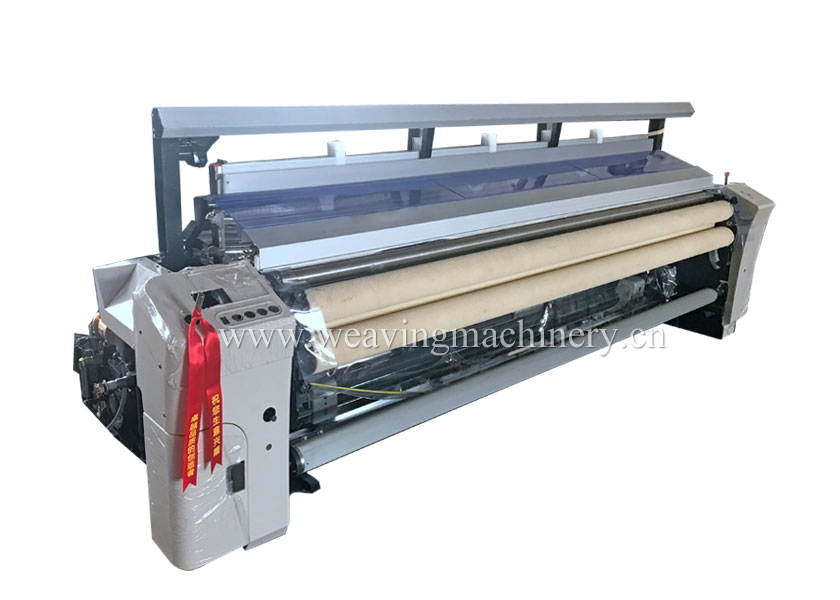

JWS708 window screening machine is a water jet loom developed by our company for weaving plastic round yarn LENO after years of research and development. Equipped with our self-developed LENO device, it can weave LENO plastic round silk fabrics.mainly used for the interweaving and braiding of plastic round filaments and high-strength filaments. The machine adopts two heald frames and installs a half-healing device to move the brown frame up and down. At the same time, the half-horizontal movement is driven by the opening mechanism, so that the warp yarns form a weaving shed, and then the weft yarns are sprayed into the shed to form a web.
At present, the weaving machine can do three kinds of products: three-strand net, five-strand net, seven-strand net.Main products: insect screens, nets, fishing nets, breeding nets,Hail prevention mesh
.Technical parameters:
1, Reed width: 190, 230, 280, 340, 360, 380, 420, 460cm;
2, speed: 250-350 rpm;
3, suitable weaving raw materials: polyethylene, polypropylene plastic round wire, chemical fiber filament;
4, the weft supply method: mechanical , electronic
5, suitable for fabric denier: 20 D - 1800 D
6, Feeler: optical feeler
7, cloth edge: Mechanical cutter or heat cutter
